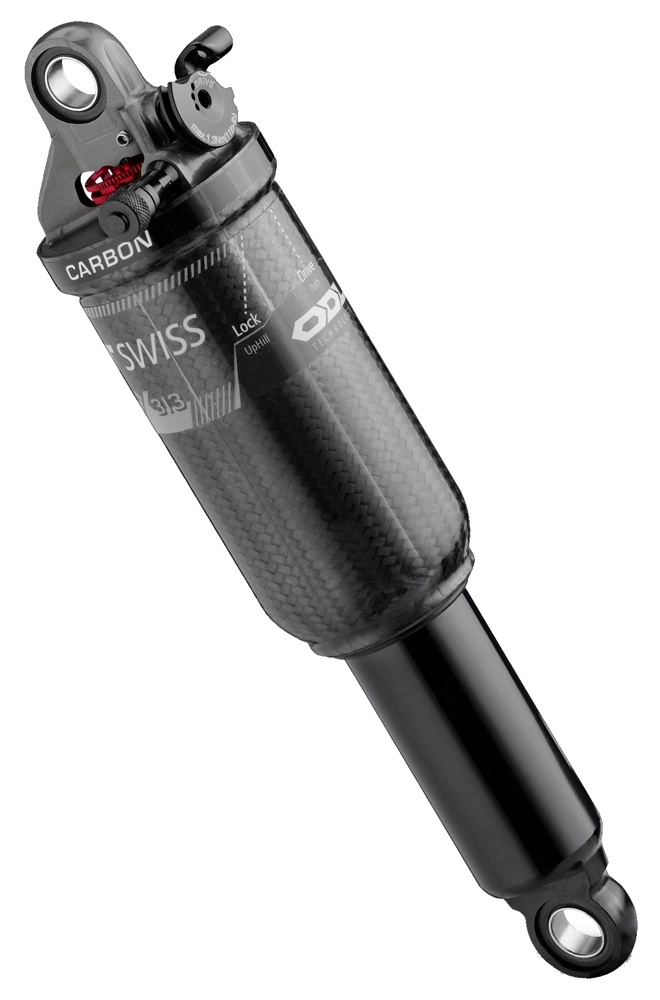

Dt-swiss X 313 Carbon Remote Shock

Full carbon comes on this innovative three setting shock to match the needs of a true mountain biker at a super low weight. With only 145 g (incl. lever) the X 313 Carbon Remote is the lightest rear shock in the world. Fully locked out mode for sprints and smooth climbs, drive mode for rough climbs and finally, fully open for when the trail points downwards and gets real rough.

---

Product features – X 313 Carbon Remote Shock

• Use: MTB
• Damping Setup: medium-medium
• Spring System: ABS
• Mounting System: Ball joint
• Damping: Rebound, 3-position compression adjustment via Remote (Open/Drive/Lock)
• Damping System: ODL
• Spring Adjust: Air pressure via single Schrader valve

Installation length x Hub (choose variant)

• 165 x 37.5 mm
• 190 x 50 mm
• 200 x 50 mm
• 200 x 55 mm

Material

• AIr Chamber: Carbon

Color

• black

Weight

• 165 x 37,5 mm: 145g
• 190 x 50 mm: 147g
• 200 x 50 mm: 150g
• 200 x 55 mm: 152g

---

Scope of delivery

• 1 x DT Swiss X 313 Carbon Remote Shock

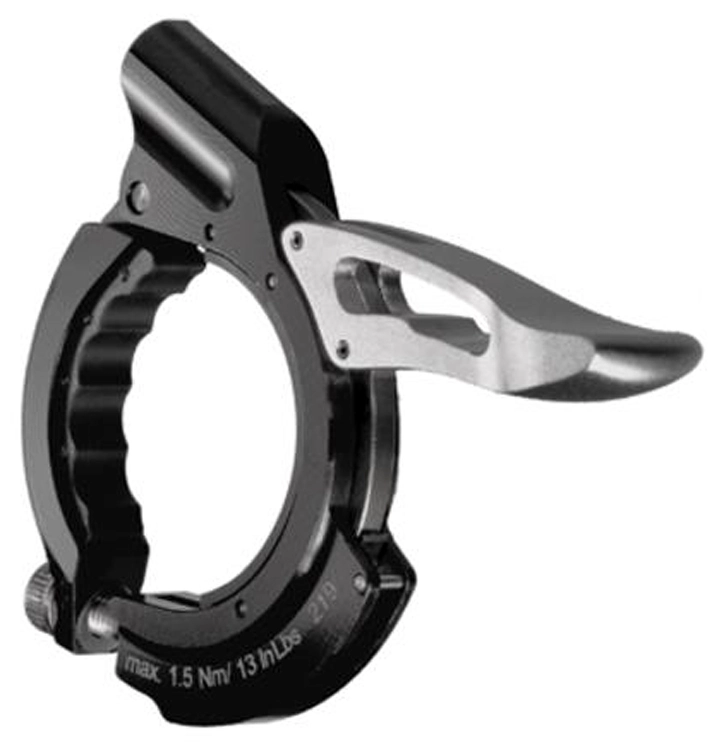

• 1 x DT Swiss Remote lever

Damper Pump and Damper bushings is not included!

---

Technologies

O.D.L
O.D.L allows you to adapt your setup to the riding situation. Its three stages, on the fly damping adjustment on the suspension unit itself or from the handlebar remote, turns every mountain biker’s dream of the right setup for all situations into reality.

• OPEN MODE: Works best when riding rough and rocky trails. The suspension works deep into its travel and offers full control in demanding riding situations.
• DRIVE MODE: Setting shines on smoother and owier trails and when riding in race mode, be it climbing or descending. The chassis is stiff and offers maximum ef ciency when riding aggres- sively.
• LOCK MODE: Is ideal for connecting trails on pavement and for sprinting situations. The damping is locked out, offering the highest level of pedalling ef ciency, while an integrated blow off function takes care of unexpectd hits.
